UPAS v2.0

UPAS v2.0 with Inlet and Cartridge removed

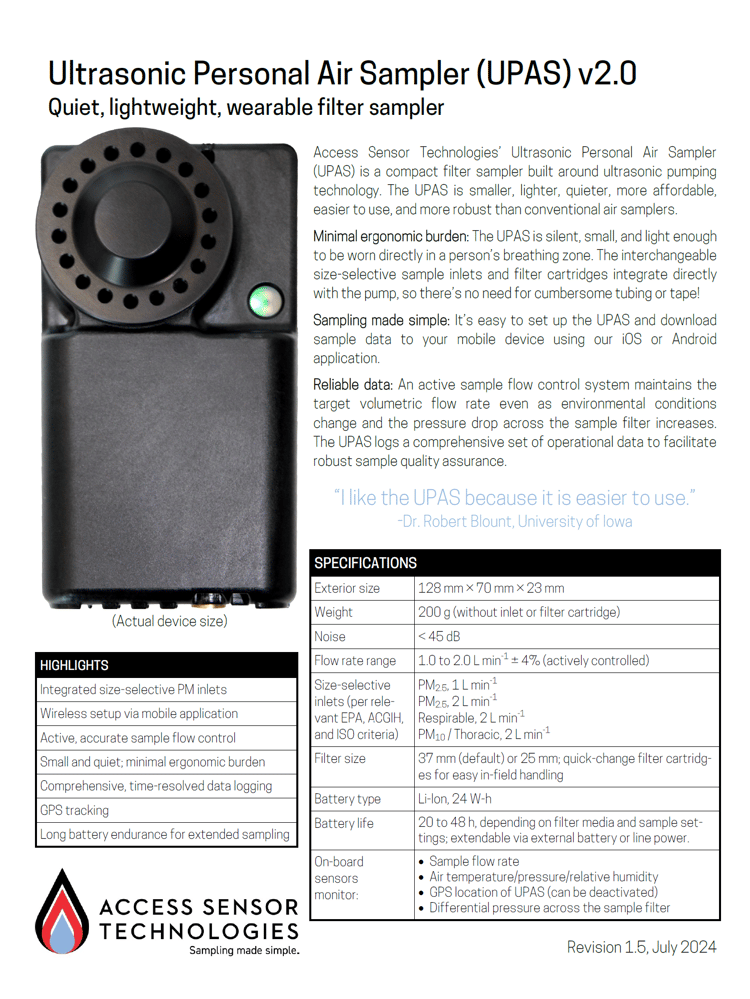

The Ultrasonic Personal Air Sampler (UPAS) is a wearable device that samples particulate matter (PM) air pollution onto filters. Samples collected with the UPAS can be analyzed to determine:

The average PM mass concentration that was present in the sampled air.
The composition of the PM (for example, the amount that is made up of black carbon—a marker of traffic-related air pollution—or various metals).

The UPAS is smaller, lighter, quieter, more affordable, easier to use, and more robust than conventional particulate matter sampling equipment.

Minimal burden: The UPAS is small, light, and silent enough to be worn in a person’s breathing zone with minimal disruption of work and life activities.

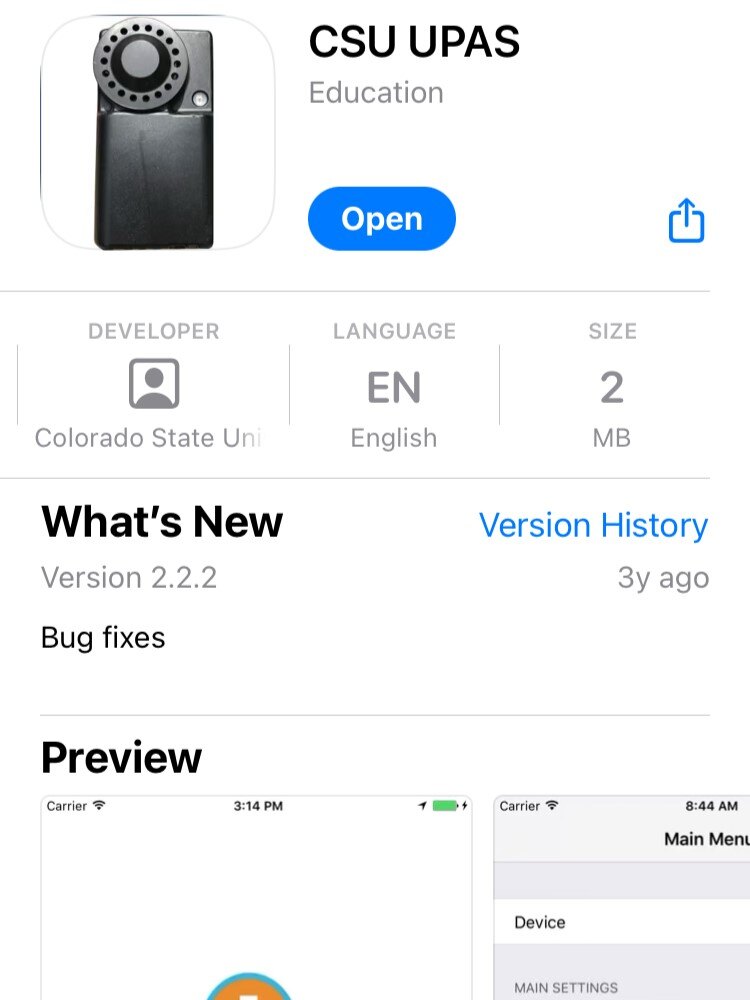

Sampling made simple: It’s easy to set up a sample using our mobile app.

Rich data log: The UPAS v2.0 logs time-resolved GPS, temperature, and humidity data to tell you where the device traveled during the sample so you identify associated pollution sources.

Reliable operation: Active controls maintain the target volumetric flow rate even as environmental conditions change and the pressure drop across the filter increases. The UPAS logs the flow rate and other operational data to facilitate robust sample quality assurance.

Durable construction: The UPAS has been field tested over thousands of hours in large sampling campaigns and challenging environments around the world.

Exterior size	128 mm × 70 mm × 23 mm
Weight	200 g (without inlet or filter cartridge)
Noise	<45 dB
Flow rate range	1.0 to 2.0 L min^-1 ± 4% (actively controlled)
Size-selective inlets (per relevant EPA, ACGIH, and ISO criteria)	PM_2.5, 1 L min^-1 PM_2.5, 2 L min^-1 Respirable, 2 L min^-1 PM₁₀ / Thoracic, 2 L min^-1
Filter size	37 mm (default) or 25 mm; quick-change filter cartridges for easy in-field handling
Battery type	Li-ion, 24 W-h
Battery endurance	20 to 48 h, depending on filter media and sample settings; extendable via external battery or line power.
On-board sensors monitor:	• Air temperature/pressure/relative humidity • GPS location of UPAS (can be deactivated) • Sample flow rate • Differential pressure across the sample filter

The UPAS has been laboratory- and field-tested alongside conventional personal sampling equipment including the Personal Environmental Monitor (PEM), the Harvard Impactor, the Mesa Labs/BGI Triplex Cyclone, and the Personal Modular Impactor (PMI). Validation data can be found in the following peer-reviewed publications:

Volckens, J., C. Quinn, D. Leith, J. Mehaffy, C. S. Henry, and D. Miller-Lionberg. 2017. Development and evaluation of an ultrasonic personal aerosol sampler. Indoor Air 27:409–16. doi: 10.1111/ina.12318. See Figure 5.

Arku, R. E., A. Birch, M. Shupler, S. Yusuf, P. Hystad, and M. Brauer. 2018. Characterizing exposure to household air pollution within the Prospective Urban Rural Epidemiology (PURE) study. Environment International 114:307–17. doi: 10.1016/j.envint.2018.02.033. See Figure 5.

Pillarisetti, A., E. Carter, S. Rajkumar, B. N. Young, M. L. Benka-Coker, J. L. Peel, M. Johnson, and M. L. Clark. 2019. Measuring personal exposure to fine particulate matter (PM2.5) among rural Honduran women: A field evaluation of the Ultrasonic Personal Aerosol Sampler (UPAS). Environment International 123:50–3. doi: 10.1016/j.envint.2018.11.014. See Figures 2 and 3.

Burrowes, V. J., R. Piedrahita, A. Pillarisetti, L. J. Underhill, M. Fandiño‐Del‐Rio, M. Johnson, J. L. Kephart, S. M. Hartinger, K. Steenland, L. Naeher, K. Kearns, J. L. Peel, M. L. Clark, W. Checkley, HAPIN Investigators. 2020. Comparison of next‐generation portable pollution monitors to measure exposure to PM_2.5 from household air pollution in Puno, Peru. Indoor Air 30:445-58. doi: 10.1111/ina.12638. See Figures 2 and 3.

Li, X., J. Tryner, B. N. Young, L. Hernandez-Ramirez, M. Phillips, S. WeMott, G. Erlandson, G. Kuiper, D. Dean, N. Martinez, L. Sanpedro, S. Magzamen, J. Volckens. 2024. Application and validation of a wearable monitor for assessing time- and location-resolved exposures to particulate matter in California’s Central Valley. Aerosol Science and Technology. doi: 10.1080/02786826.2024.2415481. See Figure 1 and Table 1.
