Weatherproof | Solar-ready | Portable | Easy setup
UPAS v2.1 PLUS in outdoor enclosure
UPAS v2.1 PLUS in Outdoor Enclosure
UPAS Outdoor Enclosure with Solar Panel

Want to use your UPAS for outdoor sampling? Our Outdoor Enclosure will protect your UPAS from the elements and make it easy to connect an external power source! This enclosure can house any UPAS model: v2.0, v2.1, or v2.1 PLUS.

Have line power at your site? The enclosure features a weatherproof port that allows you to plug the UPAS into a standard 110 V electrical outlet via a 5 V DC power adapter. In this configuration, the UPAS still runs off the internal battery, but the battery will charge as needed to keep the UPAS powered continuously.

No line power? No problem! UPAS battery life can be extended by connecting an always-on external battery pack and, optionally, a solar panel. The UPAS Outdoor Enclosure is compatible with  Voltaic's V25, V50, and V75 batteries as well as P105, P110, and P120 solar panels (all sold separately).

Sampling in hot weather? If you plan to sample in an environment where temperatures will exceed 35 °C, ask us about replacing the standard UPAS internal battery with a one that charge at battery temperatures ranging from 0 to 60 °C.

Still too hot? We can install a secondary exhaust fan inside the enclosure to provide additional convective cooling.

Specifications

Exterior size  220 mm × 108 mm × 81 mm (without mounting bracket)
Weight 770 g (without UPAS, external battery, or solar panel)
Power options Line, battery, or solar
External battery options Voltaic Systems V25 (23 W-h), V50 (47 W-h), or V75 (71 W-h); sold separately
Solar panel options Voltaic Systems P105 (5 W), P110 (10 W), or P120 (20 W); sold separately
Compatible UPAS UPAS v2.0, UPAS v2.1, and UPAS v2.1 PLUS



Technical Resources

ProductInfoSheet_OutdoorEnclosure

Product Information Sheet

UPAS Outdoor Enclosure specifications

Download PDF from Dropbox

Screenshot of UPAS Outdoor Enclosure Quick-Start Guide cover page

Quick-Start Guide

UPAS Outdoor Enclosure Quick-Start Guide

Download PDF from Dropbox

Screenshot of "Outdoor monitoring" folder in public UPAS Zotero library

UPAS Zotero Library

Studies in which UPAS were used outdoors

Link to public Zotero library

Related Blog Posts

Recent related blog posts

Pricing

Email contact@accsensors.com to request a quote. Let us know if you are interested in purchasing an external battery pack, solar panel, and/or sun shade in addition to the core items listed below.

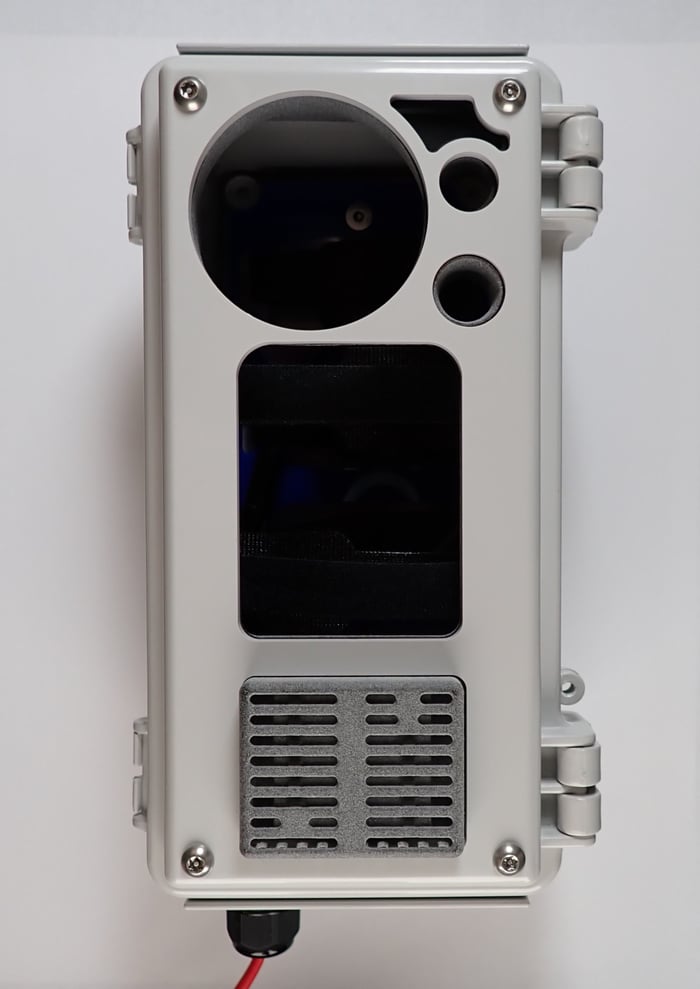

UPAS Outdoor Enclosure image

UPAS Outdoor Enclosure

$345.00

Enclosure only; compatible with all UPAS versions

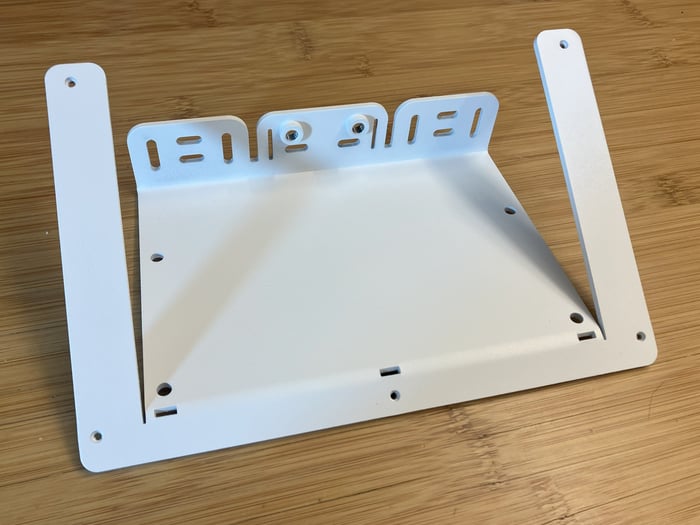

Mounting Bracket image

Mounting Bracket

$144.45

Use this bracket to mount the enclosure to a pole and attach a solar panel or sun shade

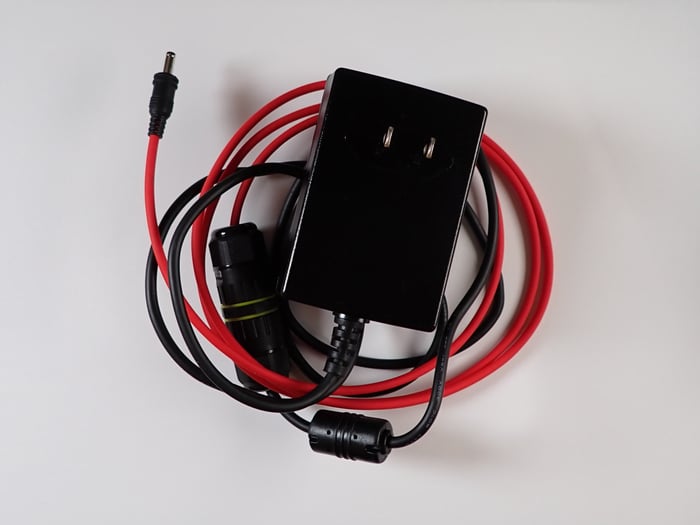

UPAS Outdoor Enclosure Power Adapter image

UPAS Outdoor Enclosure Power Adapter

$107.00

Needed to plug a UPAS that is installed in an outdoor enclosure into a 110 V outlet; U.S. only.

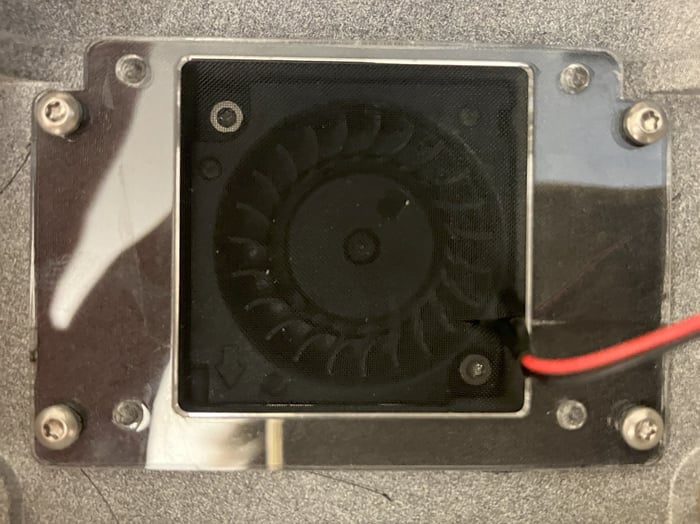

UPAS Outdoor Enclosure Cooling Fan image

UPAS Outdoor Enclosure Cooling Fan

$107.00

Add a fan to the outdoor enclosure to reduce the likelihood of over-temperature UPAS shutdown in hot locations. Requires power from an external battery or outlet.

Photograph of UPAS and accessories with shipping cases
Photograph of UPAS v2.0 at workbench

Request a free product demonstration

We can send you a hardware to try for a few weeks before you buy. This demonstration is free as long as the product is returned at the end of the demonstration period. No purchase is required.  Fill out and submit this form to request a demonstration unit.

Request service

Want to send your hardware back for repair? Have a technical question?  Fill out and submit this service request form.
